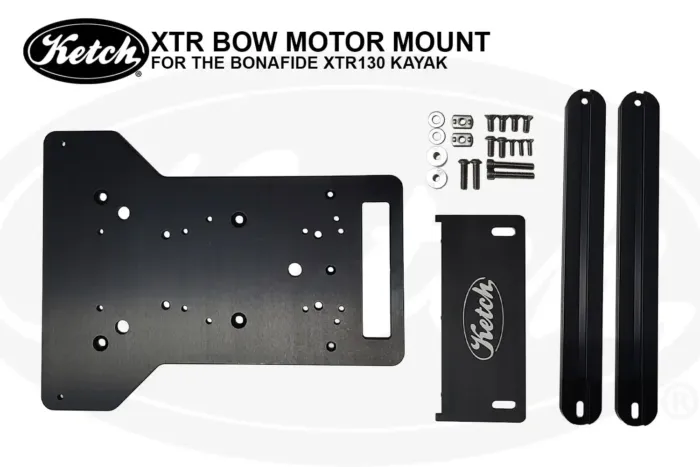

Product photo of the Ketch XTR Bow Motor Mount kit designed for the Bonafide XTR130 kayak. The image shows the main black anodized aluminum mounting plate with multiple pre-drilled holes, two support rails, a smaller Ketch-branded bracket plate, and a full hardware set including bolts, washers, and t-nuts, arranged neatly on a white background.

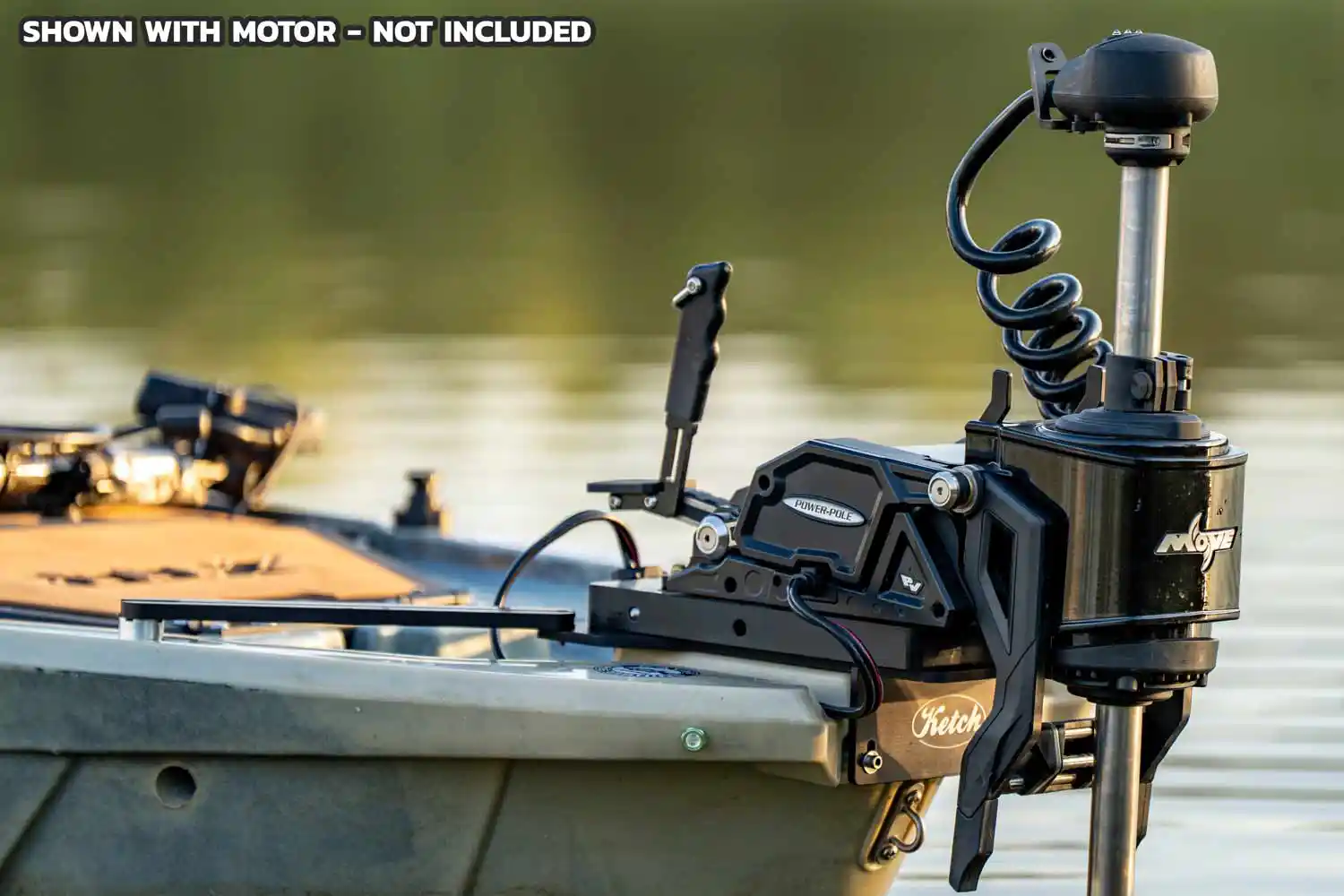

Side profile of a trolling motor installed on a Ketch bow motor mount at the front of a kayak, floating on calm water. Motor is shown for demonstration purposes only, not included.
Close-up angled view of the Ketch XTR Bow Motor Mount for the Bonafide XTR130 kayak. The black anodized aluminum plate is shown with multiple pre-drilled mounting holes and a slotted cutout, highlighting its sturdy construction.
Close-up of a bow-mounted trolling motor plate installed on a kayak, with coiled wiring and mounting hardware visible. The motor is attached for demonstration but not included with the mount. The kayak is resting on rocky shoreline, with a 'Made in USA' sticker visible near the mount.

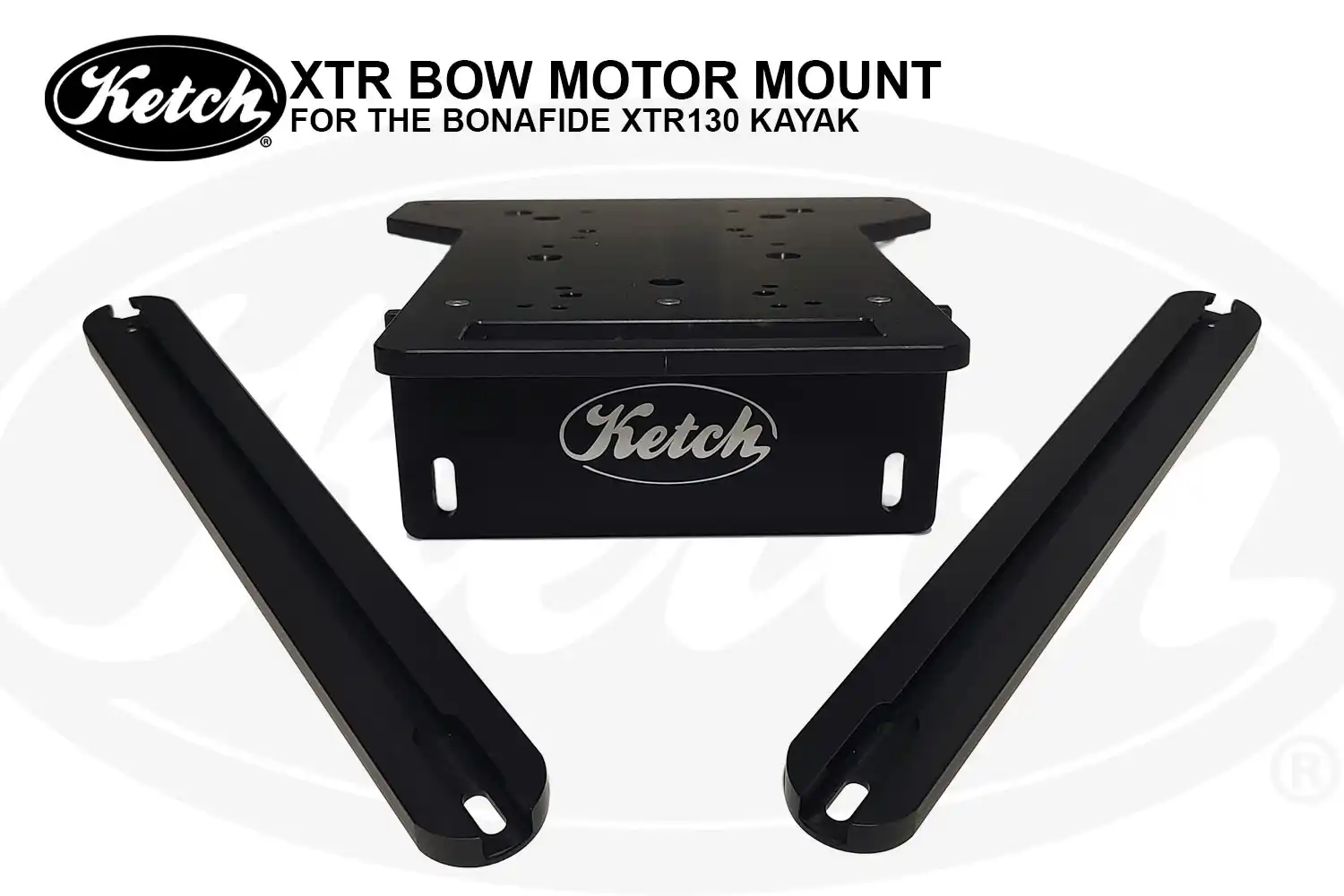

Angled product view of the Ketch XTR Bow Motor Mount kit for the Bonafide XTR130 kayak. The black anodized aluminum mounting plate with pre-drilled holes is shown attached to the Ketch-branded front plate, with two matching side support rails positioned on either side.
Side profile of a trolling motor installed on a Ketch bow motor mount at the front of a kayak, floating on calm water. Motor is shown for demonstration purposes only, not included.

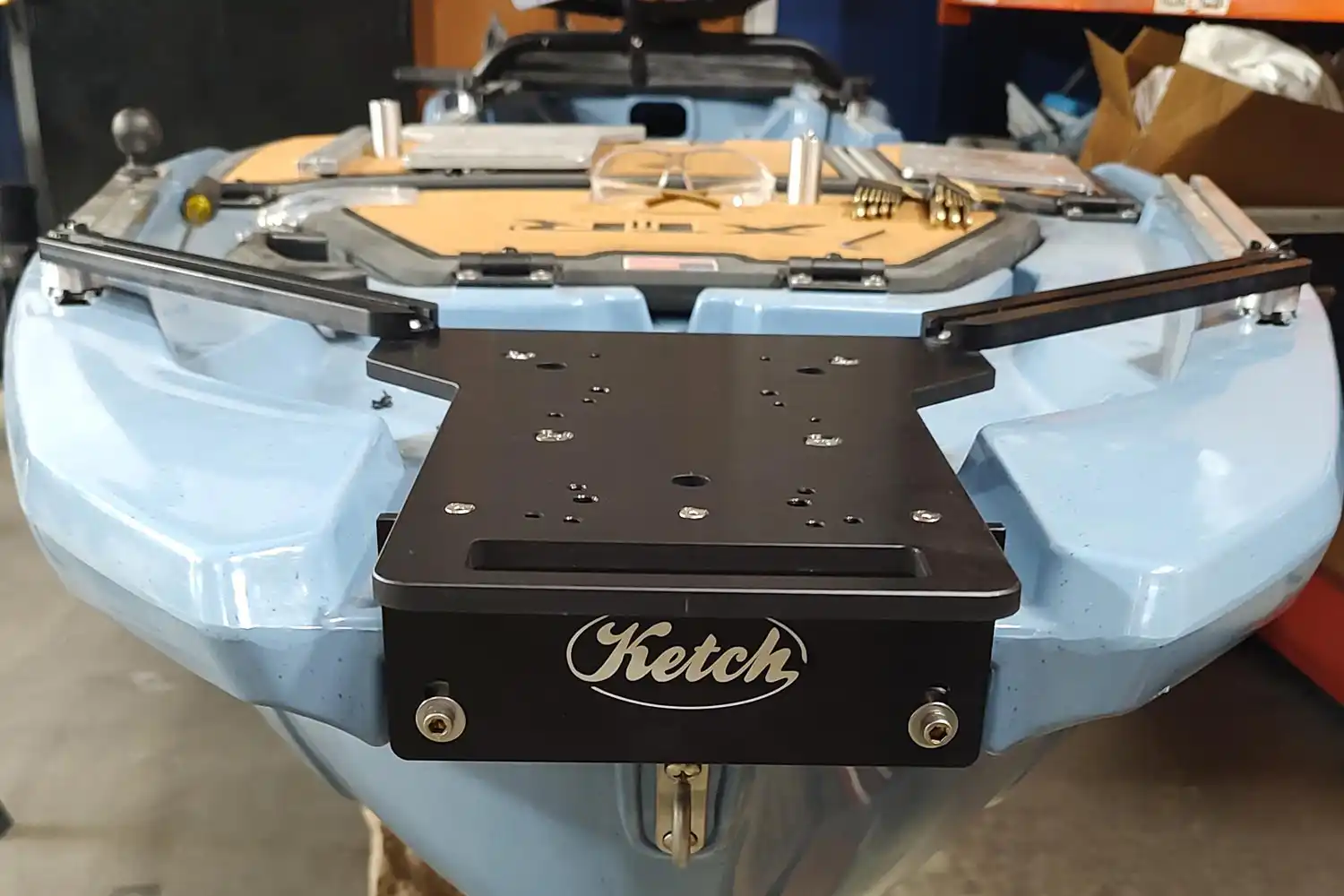

Front view of the Ketch XTR Bow Motor Mount installed on the Bonafide XTR130 kayak. The black anodized aluminum mount with Ketch logo is bolted securely to the blue kayak’s bow, showing the alignment of the support rails and mounting plate.

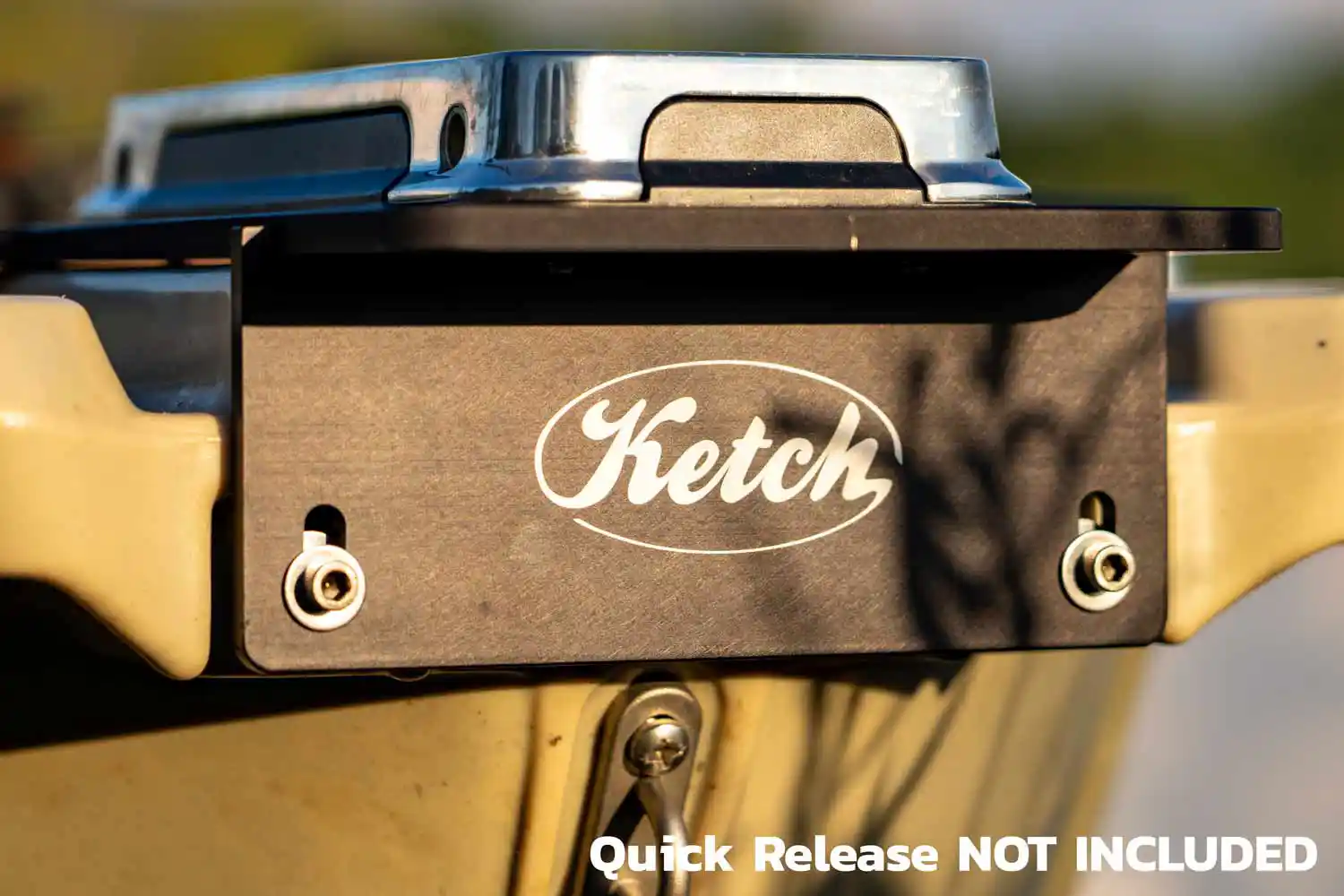

Close-up of the Ketch-branded kayak motor mount plate securely installed at the bow of a kayak, shown without the quick release bracket.
Hardware set included with the Ketch XTR Bow Motor Mount for the Bonafide XTR130 kayak. The kit features washers, T-nuts, and multiple sizes of black mounting bolts arranged neatly on a white background.

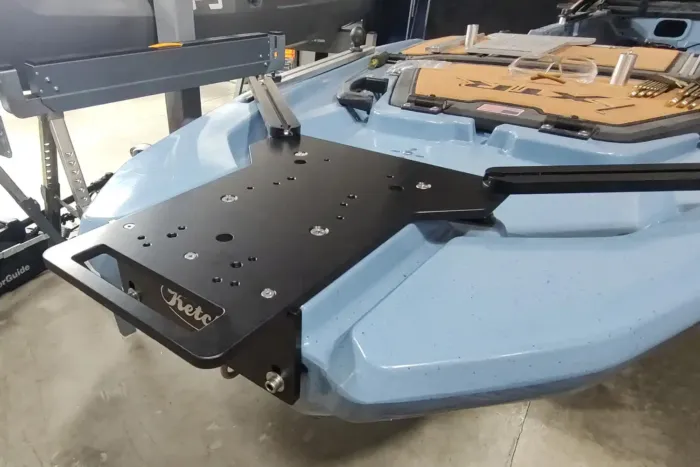

Angled front-side view of the Ketch XTR Bow Motor Mount installed on the Bonafide XTR130 kayak. The black anodized aluminum plate with Ketch logo and support rails is securely attached to the blue kayak’s bow, ready for trolling motor setup.

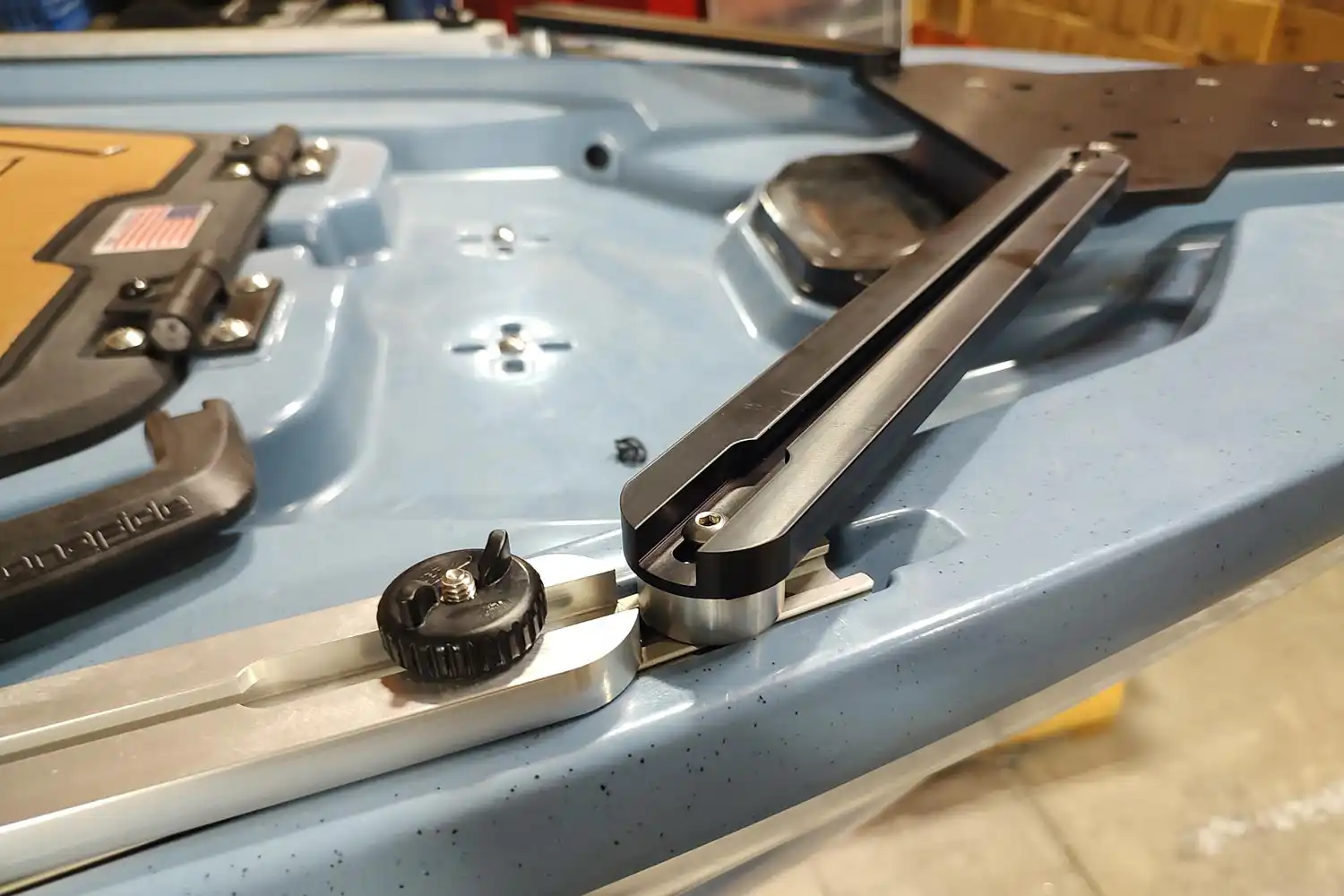

Close-up of the Ketch XTR Bow Motor Mount support rail installed on the Bonafide XTR130 kayak. The anodized aluminum rail is secured to the kayak’s track system with a knob and hardware, showing the precise fit and sturdy construction.
Ketch XTR Bow Motor Mount installed on the bow of a Bonafide XTR130 kayak. The black anodized aluminum mounting plate and support rails are securely attached to the blue kayak, ready for a trolling motor installation.
Overhead view of the Ketch bow motor mount installed on a kayak, showing dual support arms and mounting surface. Quick release bracket is pictured but not included.

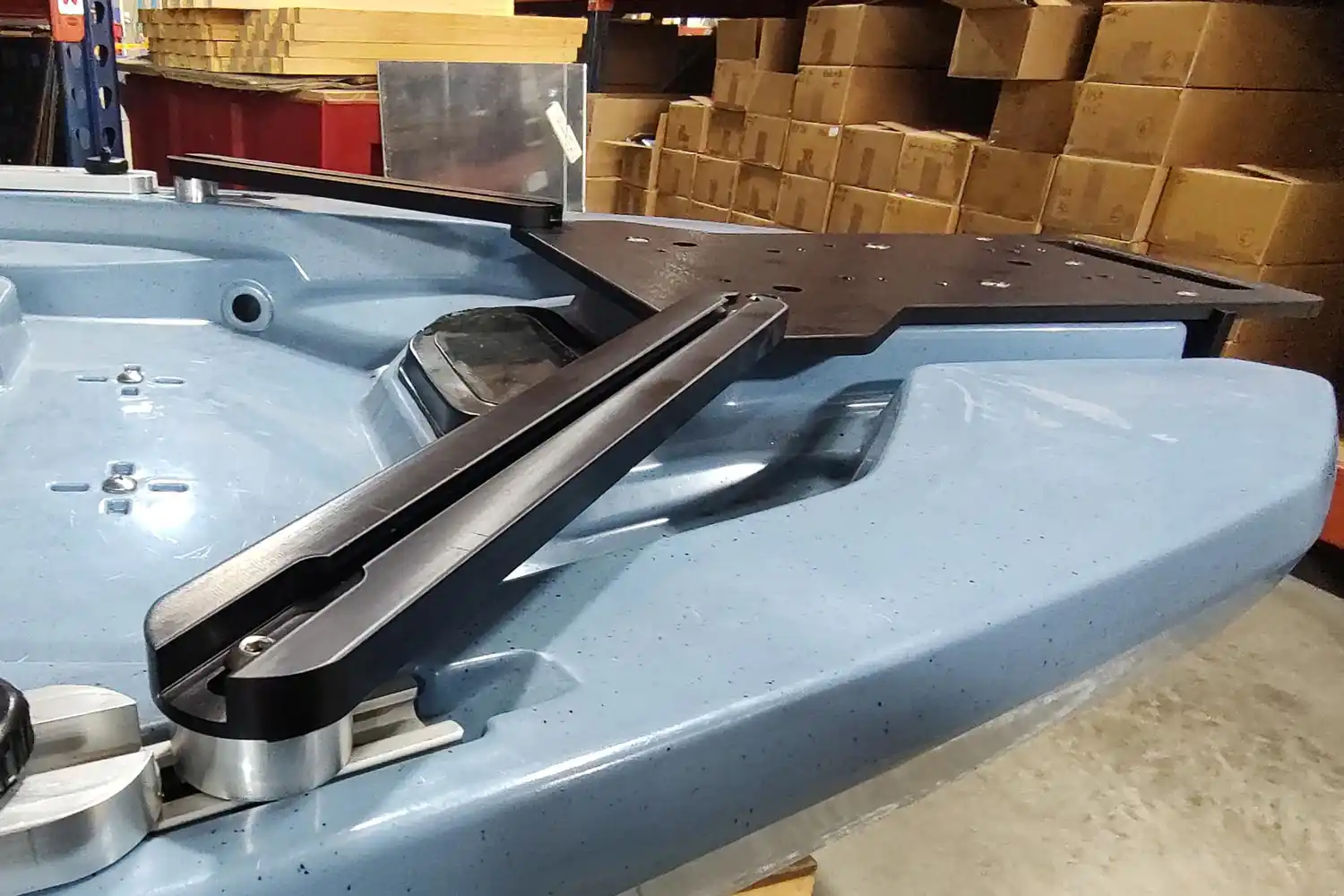

Side view of the Ketch XTR Bow Motor Mount installed on the Bonafide XTR130 kayak. The black anodized aluminum mounting plate and support rails are securely fastened to the blue kayak’s bow.

Ketch XTR130 Kayak Bow Trolling Motor Mount

You’ll feel the strength of this trolling motor mount for the Bonafide XTR130 the moment you pick it up. Built from precision-cut aluminum, it delivers the rigidity, durability, and stability your motor needs to push your kayak to peak performance.

This mount includes all hardware and backing plates for a clean, watertight install, no headaches, no leaks. 100% USA made. Mount it right the first time with Ketch!

$189.99

In stock

SKU: NBX-000-180

Description

Ketch Precision engineered bow kayak trolling motor mount for the Bonafide® XTR 130 kayak.

The first in our new generation of motor mounts to accommodate higher thrust 24V and 36V bow mounted trolling motors.

For higher thrust applications plastic simply won’t cut it, and if you’d like to remove the flex from your bow and increase the performance and efficiency of your bow mount motor… this is the solution.

Specifically designed to work with Minn Kota, Motor Guide, Lowrance, and Powerpole motors, and braced to handle the extra power like a champ.

Even though this was designed with higher 80# and 110# motors in mind it still works with the popular MotorGuide Xi3 and MinnKota Terrova kayak variants.

  • Made specifically for the Bonafide® XTR 130 Kayak
  • 100% American Made
  • 6061 Aluminum
  • Midnight Black Anodized Aluminum finish
  • Weight: 5.4lb
  • Dimensions: 12″ x 1 5/16″  x 21 1/4″
  • Included Stainless Steel Hardware (unless otherwise noted):
    – Qty:2,  1/4-20 Spacers (raw aluminum)
    – Qty:2,  1/4-20 x 1 Button Head Hex Drive
    – Qty:2,  1/4-20 x 1.5 Socket Head Cap Screw
    – Qty:2,  1/4-20 x 5/8 Button Head Hex Drive
    – Qty:4,  1/4-20 x 5/8 Flat Head Phillips Screw
    – Qty:2,  1/4-20 Washer
    – Qty:3,  8-32 x 5/8 Flat Head Hex Drive
    – Qty:2,  #10-32 Twin Pilot Spot Weld Nut
    – Qty:2,  1/2″ spacers (raw aluminum)
  • Does not include motor or quick mount.

Use arrows to view more images below…

Overhead view of parts included for the Ketch XTR Kayak Bow Trolling Motor Mount on a white background
Side profile of a trolling motor installed on a Ketch bow motor mount at the front of a kayak, floating on calm water. Motor is shown for demonstration purposes only, not included.

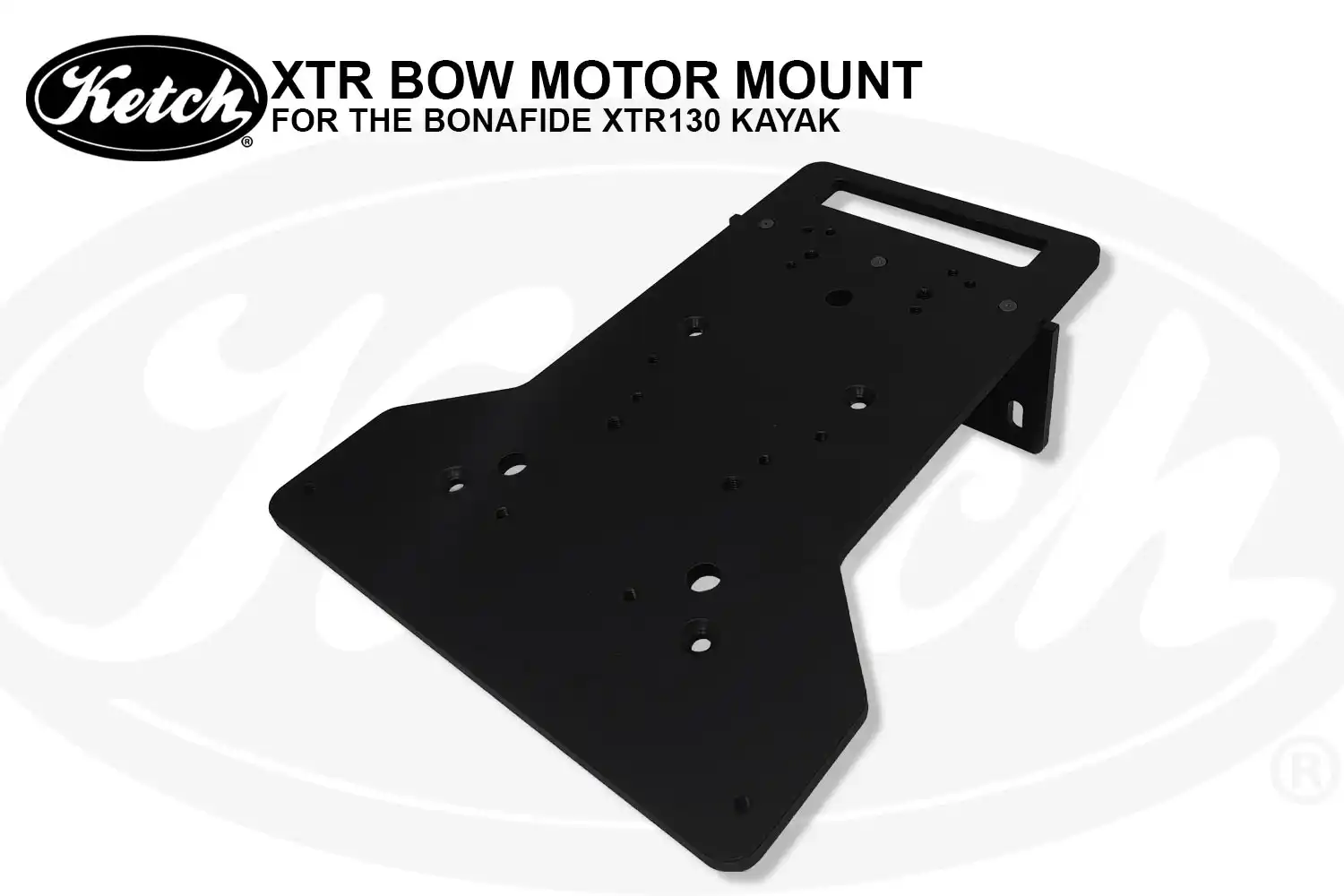

Overhead view of just the Ketch motor mounting plate for the Bonafide XTR130 Kayak.

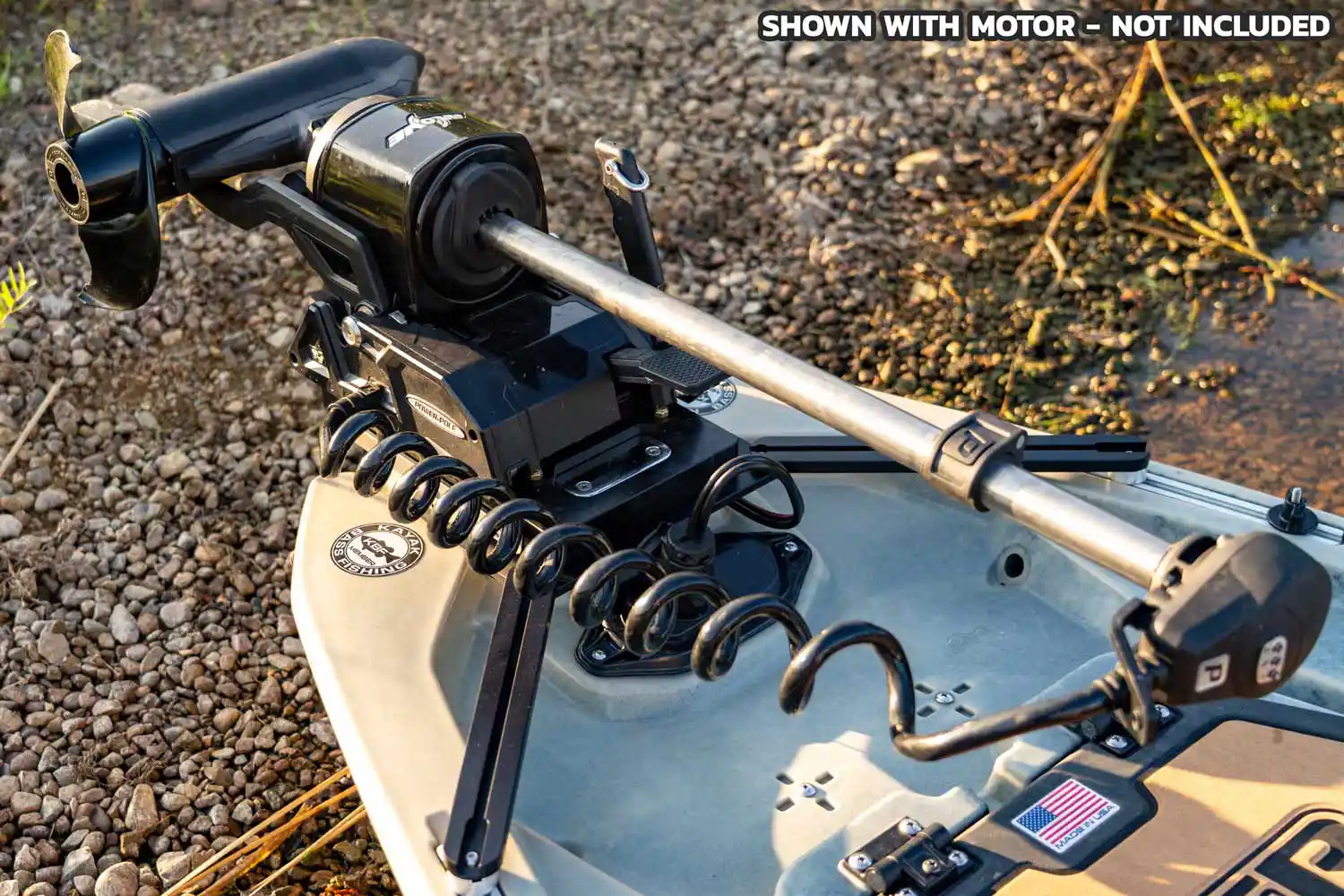

Overhead view of a trolling motor mounted to a Ketch bow motor mount on a kayak, with coiled wiring and mounting hardware visible. Motor shown for demonstration only, not included.
Side profile of a trolling motor installed on a Ketch bow motor mount at the front of a kayak, floating on calm water. Motor is shown for demonstration purposes only, not included.
Overhead view of the Ketch XTR130 Kayak Bow Motor Mount.

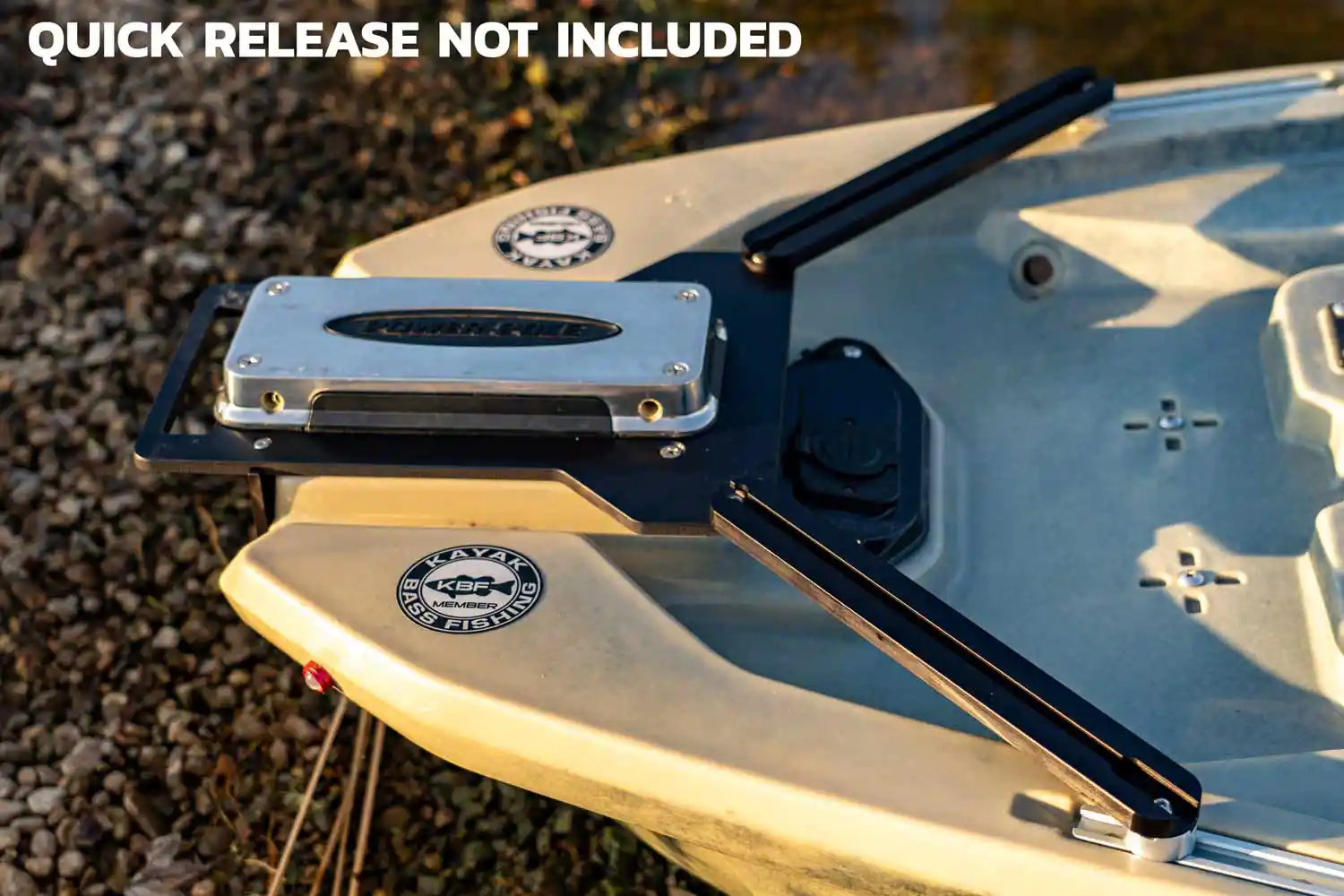

Front view of the Ketch XTR Bow Trolling Motor Mount installed on a kayak with text indicating the quick release bracket is not included.

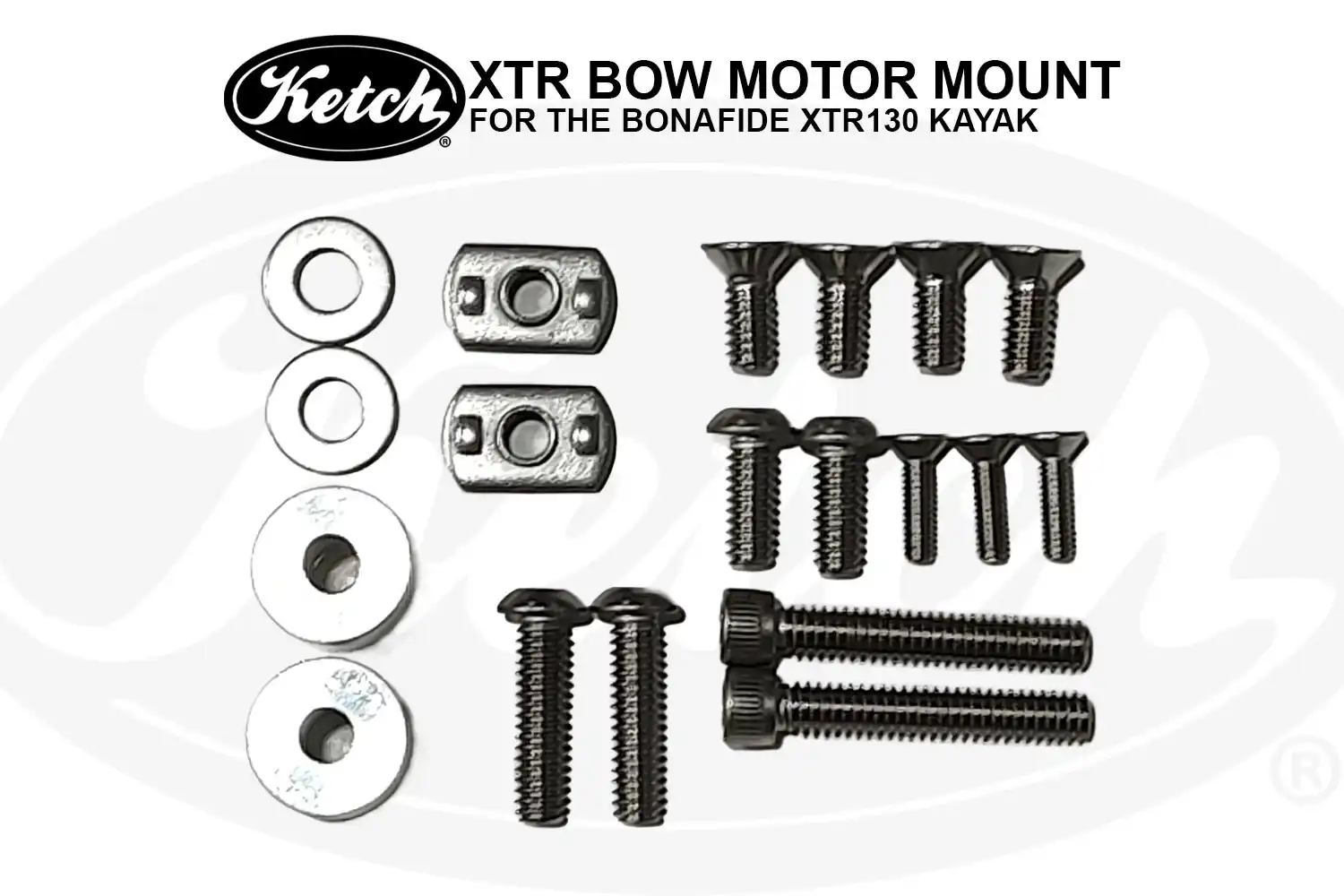

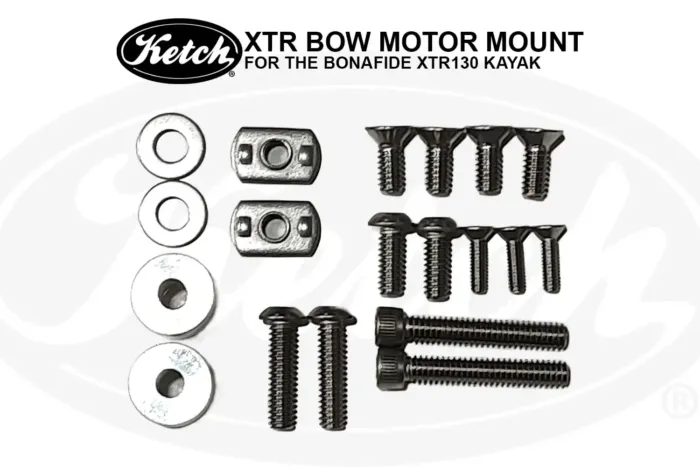

Overhead view of the hardware that is included with the Ketch XTR Motor Mount shown on a white background with the Ketch logo ghosted behind.
Front view of the Ketch XTR130 Bonafide Kayak Motor Mount shown installed on a kayak.

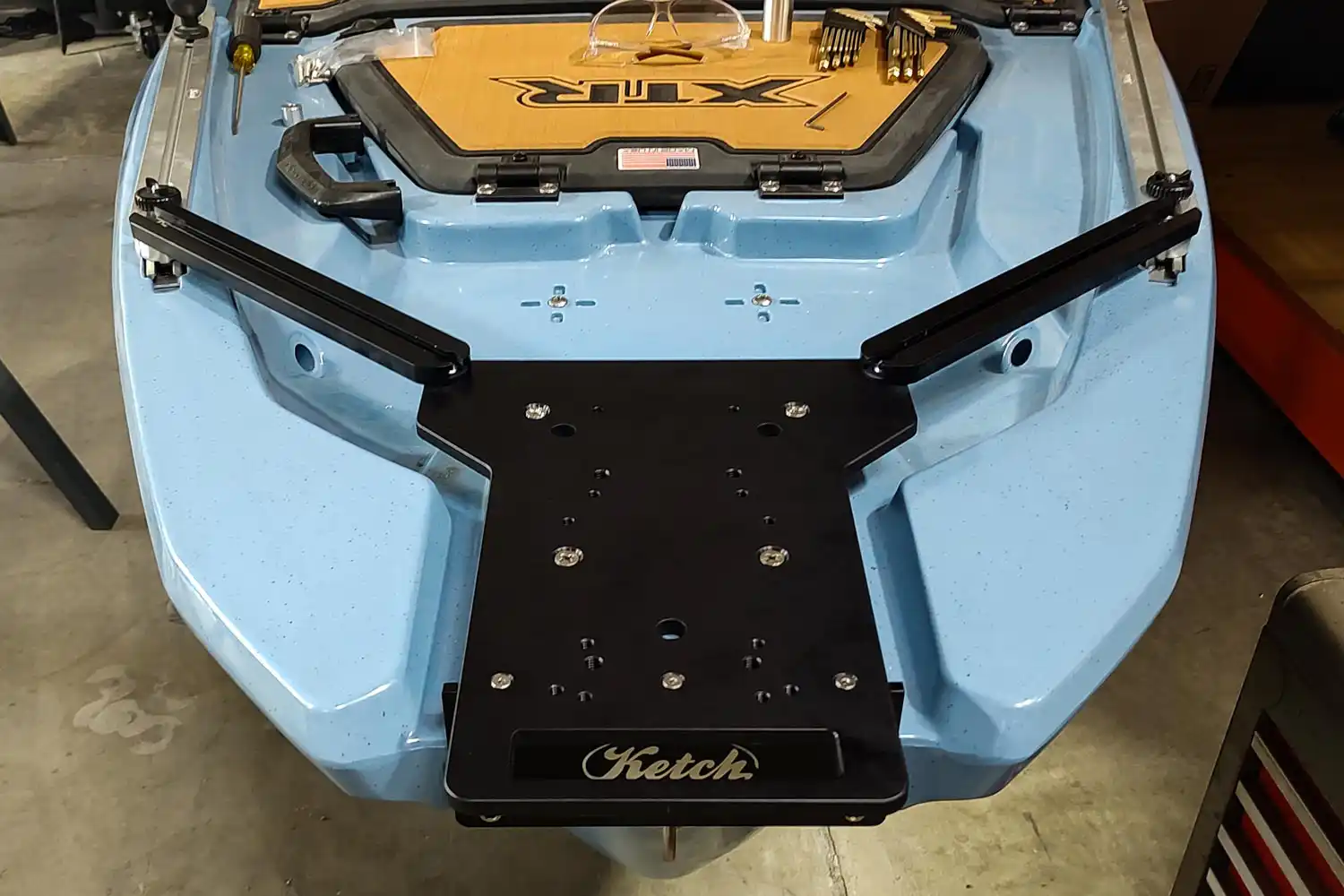

Overhead view of the Ketch XTR Bow Motor mount on a blue kayak in a shop.
Overhead view of the Ketch bow motor mount installed on a kayak, showing dual support arms and mounting surface. Quick release bracket is pictured but not included.

Ketch XTR Bow Motor Mount Compatibility Guide

The Ketch XTR Bow Motor Mount is designed to work with a wide range of motors and quick release brackets. Below is a simple breakdown to help you choose the right setup.

Directly Compatible (no extra hardware needed)

  • Minn Kota MKA-21

  • Minn Kota RTA-17

  • MotorGuide 63

  • MotorGuide 17

  • Garmin Force (tight fit – works, but very snug; Version 2 will feature adjusted hole spacing)

⚡ *Note on Garmin Fit:
The Garmin Force fits, but it’s very tight. Customers should expect a snug install. Start all screws just a little bit, and then rotate tightening each one a little at a time until they are all tightened, like you would putting the lug nuts on a wheel. We’re already working on Version 2 of the XTR Mount, which will include adjusted hole spacing to improve Garmin fitment.

  • PowerPole (requires the correct quick release; only one mount option available)

Not Compatible

  • Minn Kota RTA-19

  • Minn Kota MKA-23

Compatible With Quick Release Plates

When paired with the correct quick release bracket, the XTR works with:

  • PowerPole Move

  • Garmin Force

  • Garmin Force Kraken

  • Lowrance Ghost / Recon

  • MotorGuide Xi3

  • MotorGuide Xi5

  • Minn Kota PowerDrive

  • Minn Kota Terrova

  • Minn Kota Ulterra

General Rule of Thumb

If you choose the right quick release for your motor, the Ketch XTR will work. All Minn Kota plates work interchangeably with Xi3, Xi5, and Lowrance Recon (and the upcoming Lowrance Scout).
